In the Frame of Nature
Basic information
Project Title
Full project title
Category
Project Description

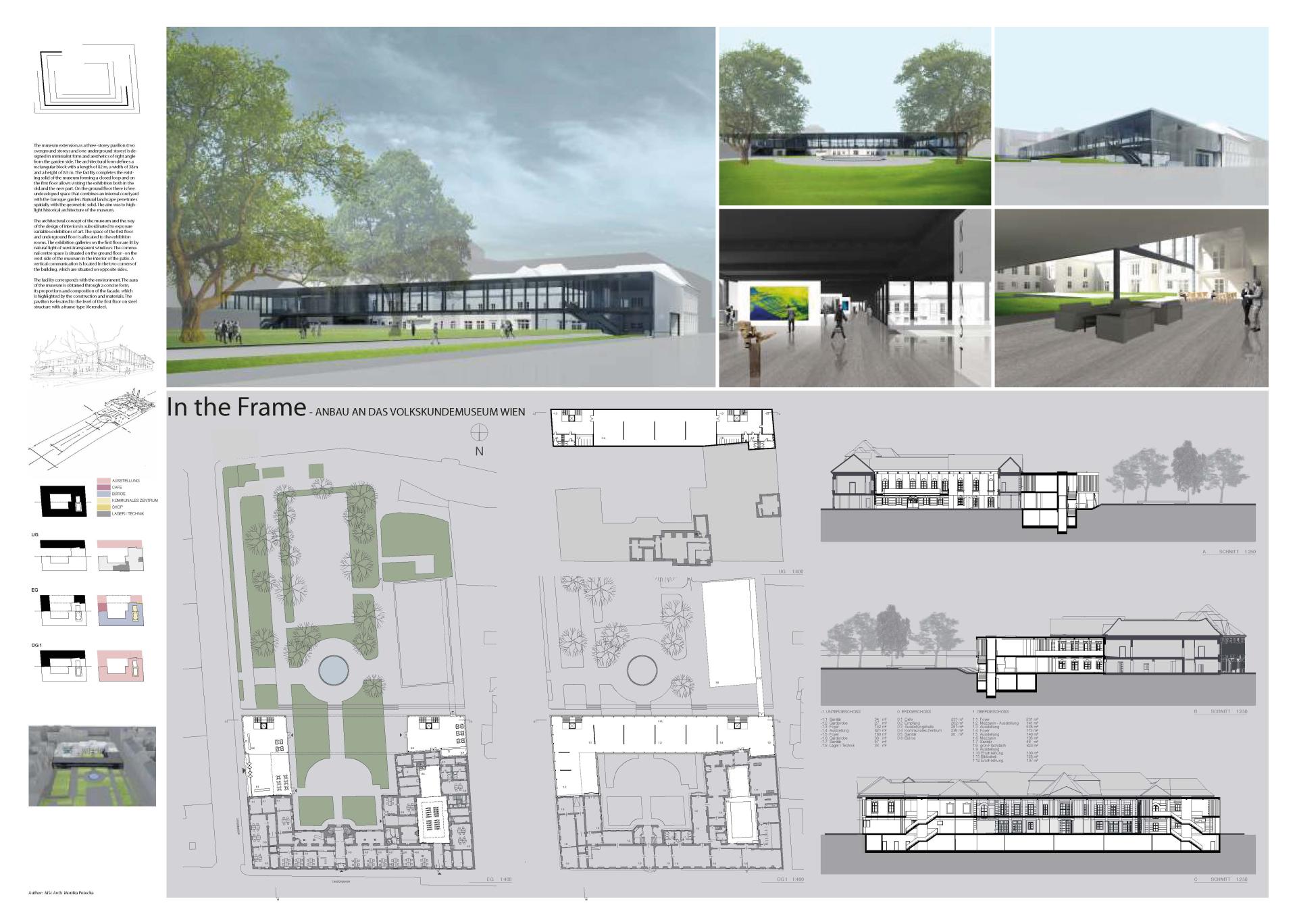

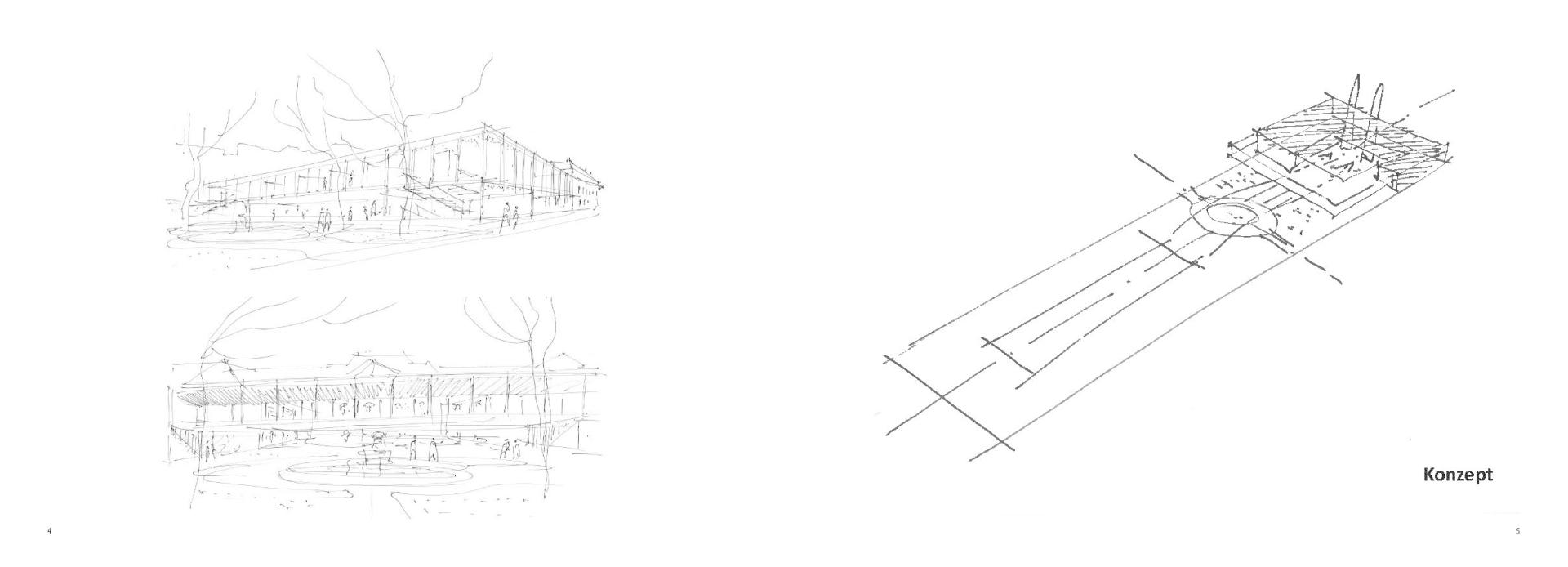

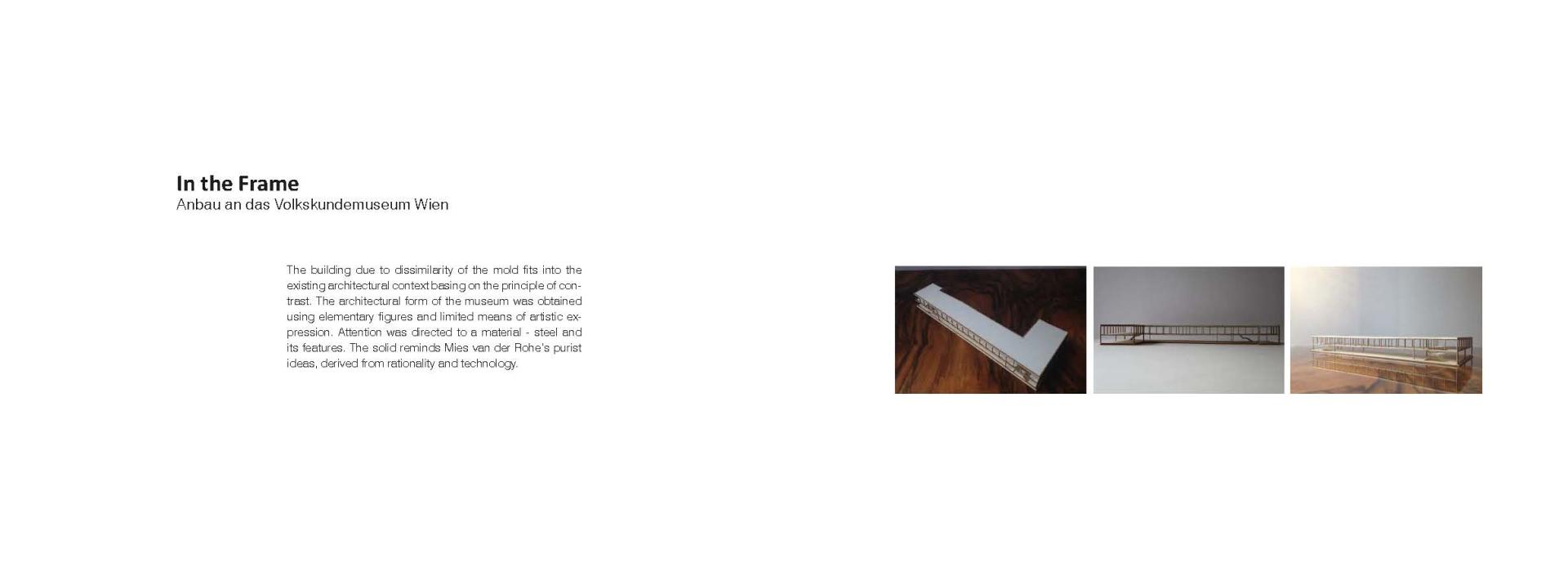

The historic building of the Volkskundemuseum Wien expanded in the spirit of the New European Bauhaus. The building due to dissimilarity of the mold fits into the existing architectural context basing on the principle of contrast. The architectural form was obtained using elementary figures and limited means of artistic expression. Attention was paid to the material - steel and its features. The solid reminds Mies van der Rohe‘s purist ideas, derived from rationality and technology.
Project Region
EU Programme or fund
Description of the project
Summary
The historic building of the Volkskundemuseum Wien expanded in the spirit of the New European Bauhaus.

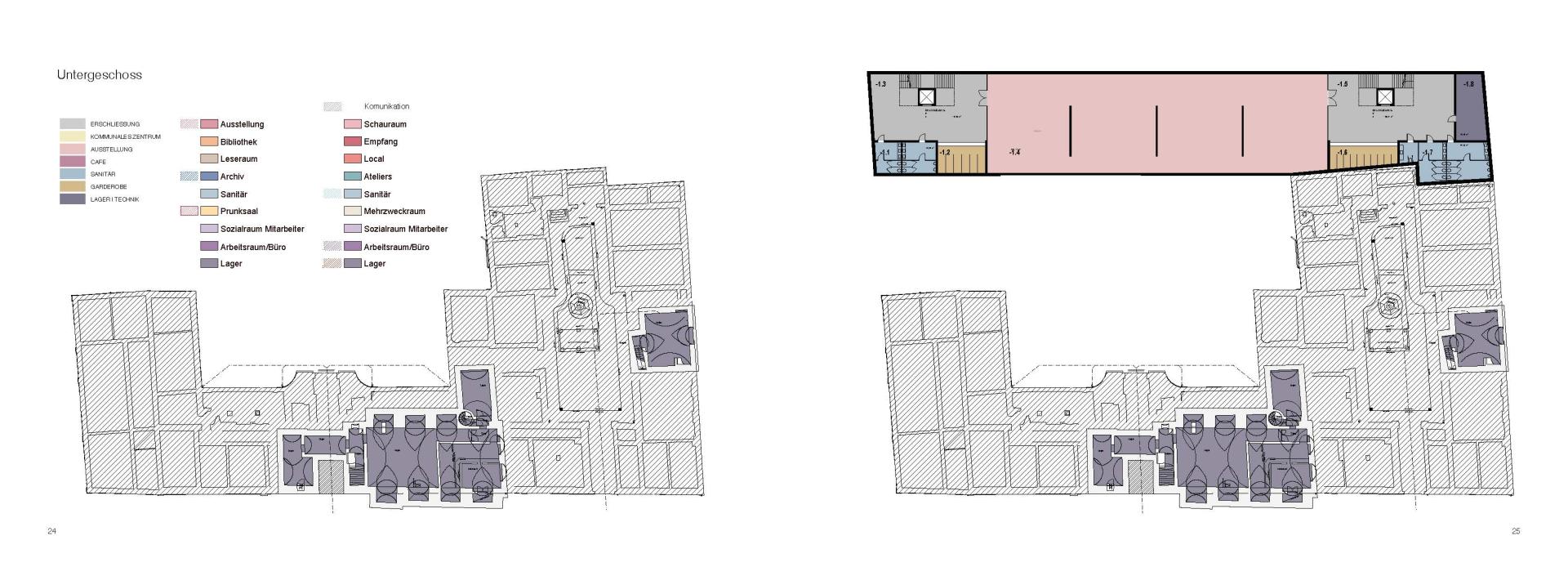

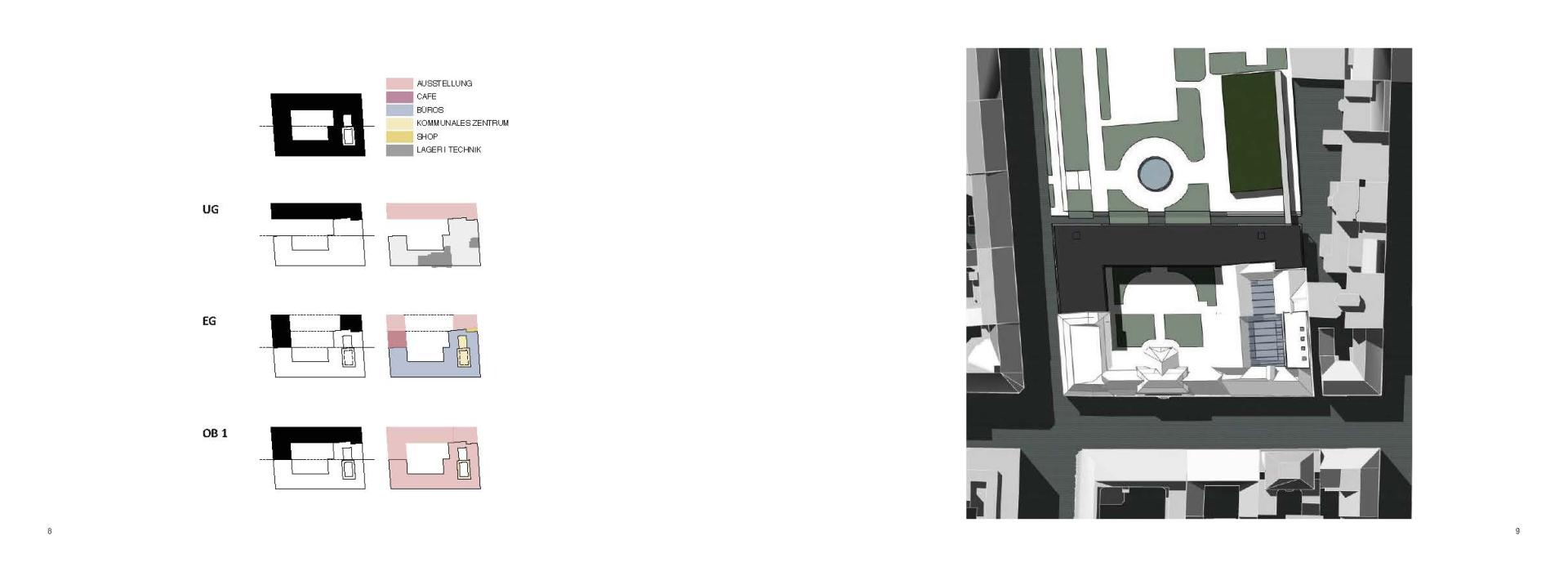

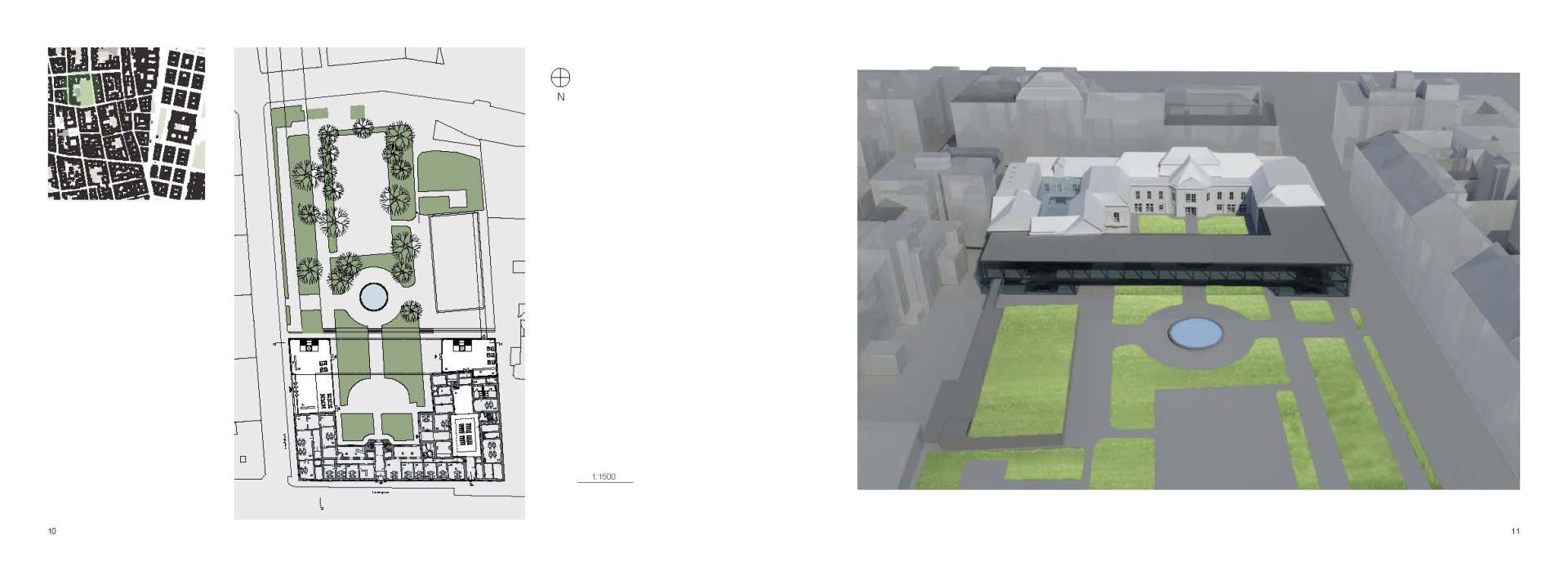

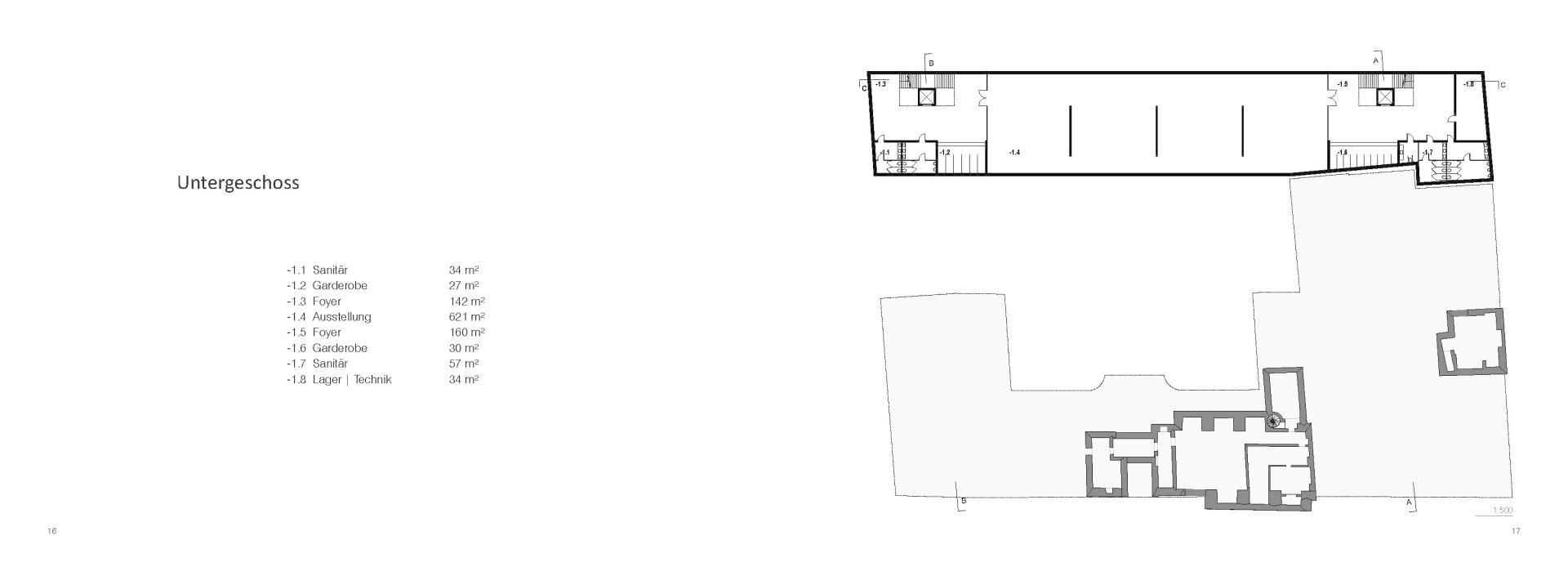

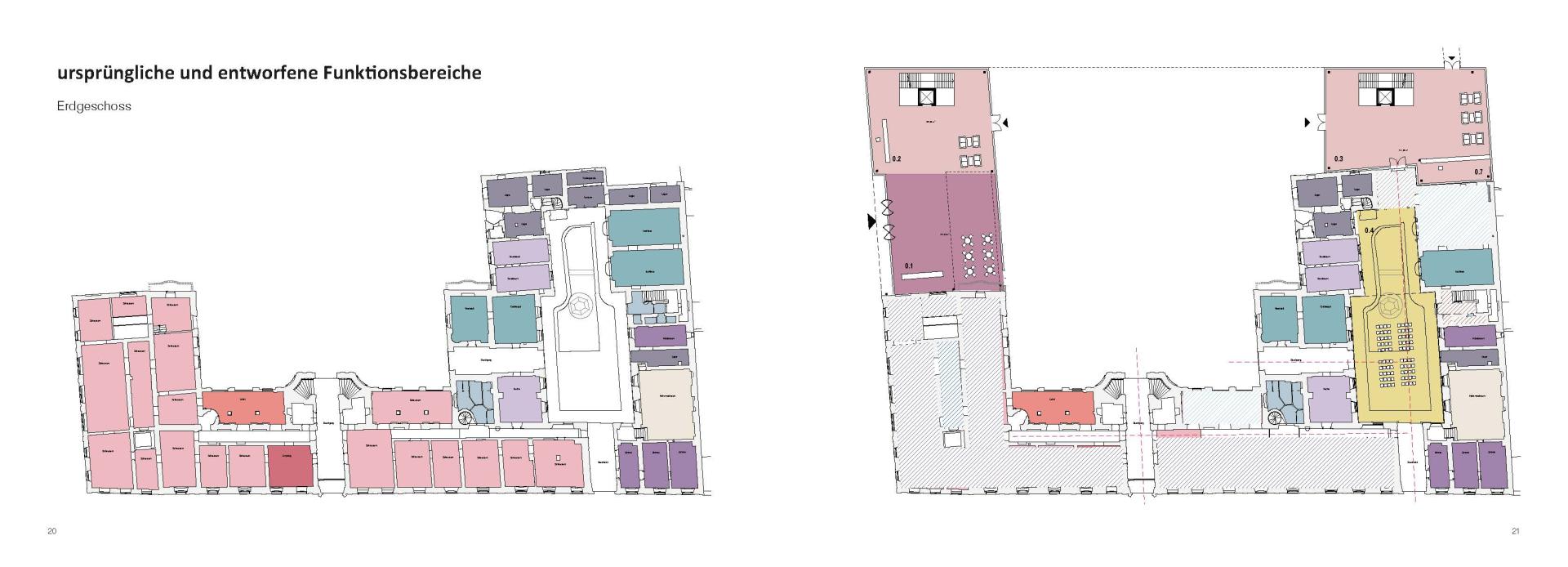

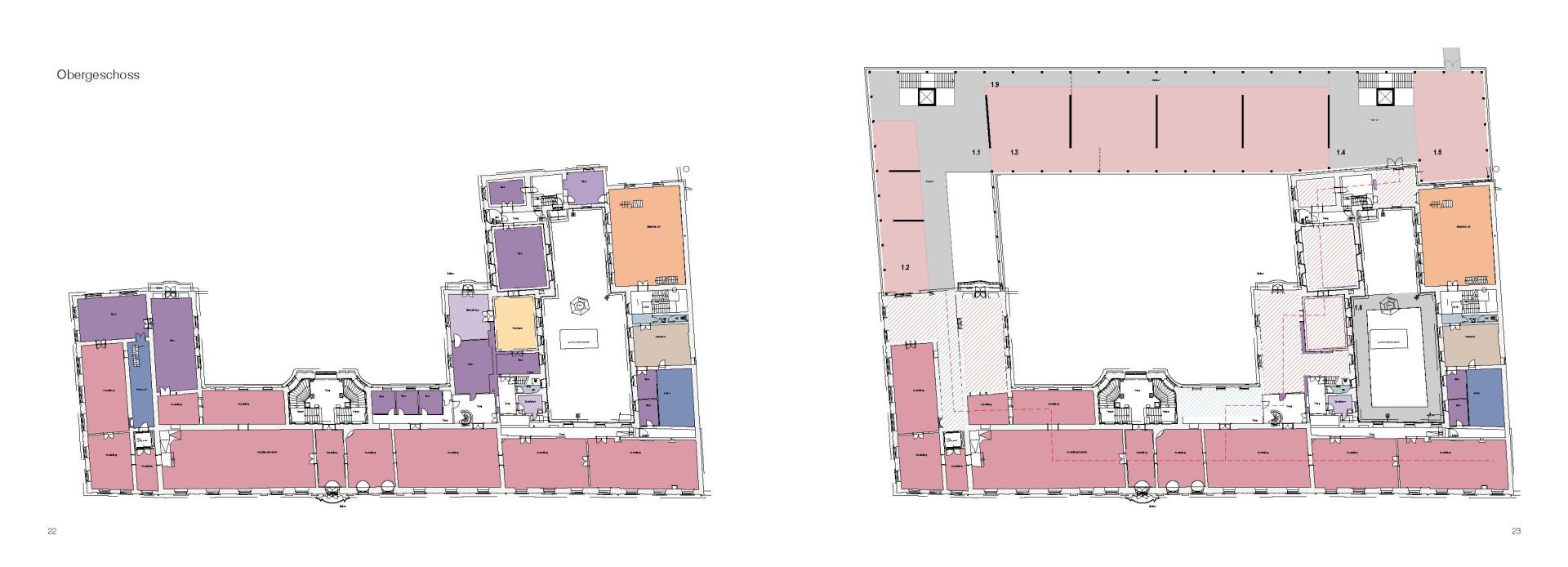

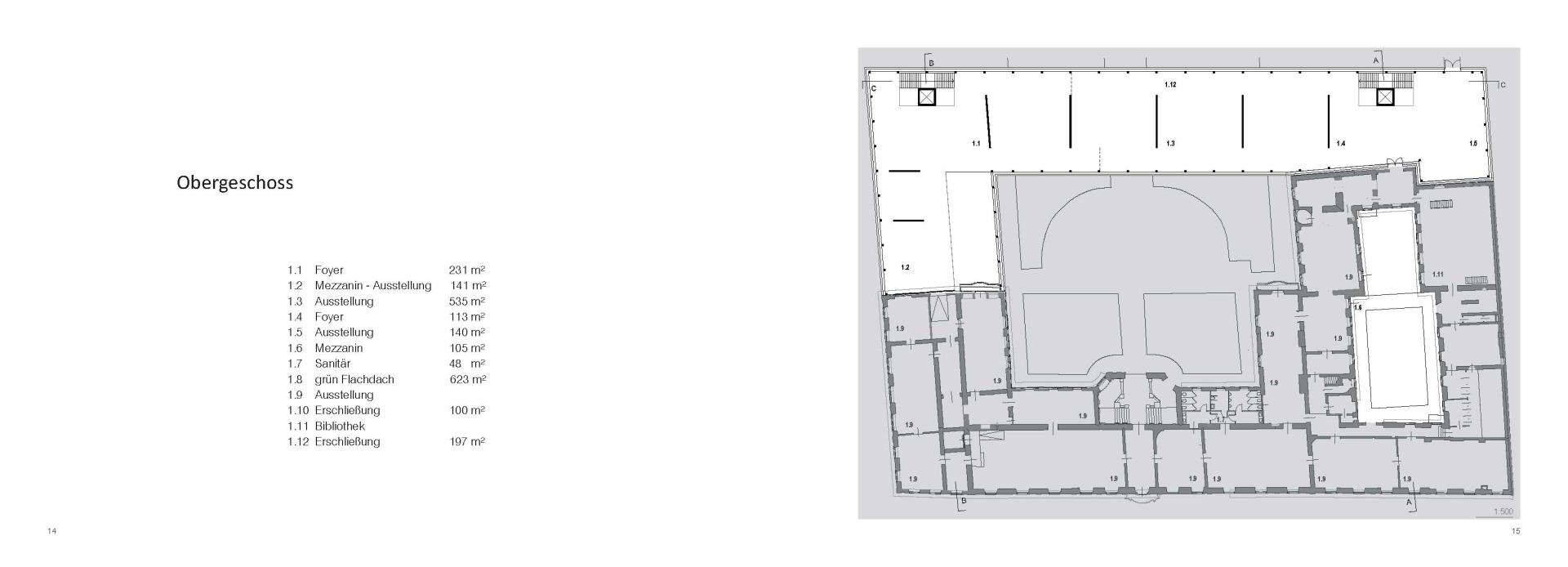

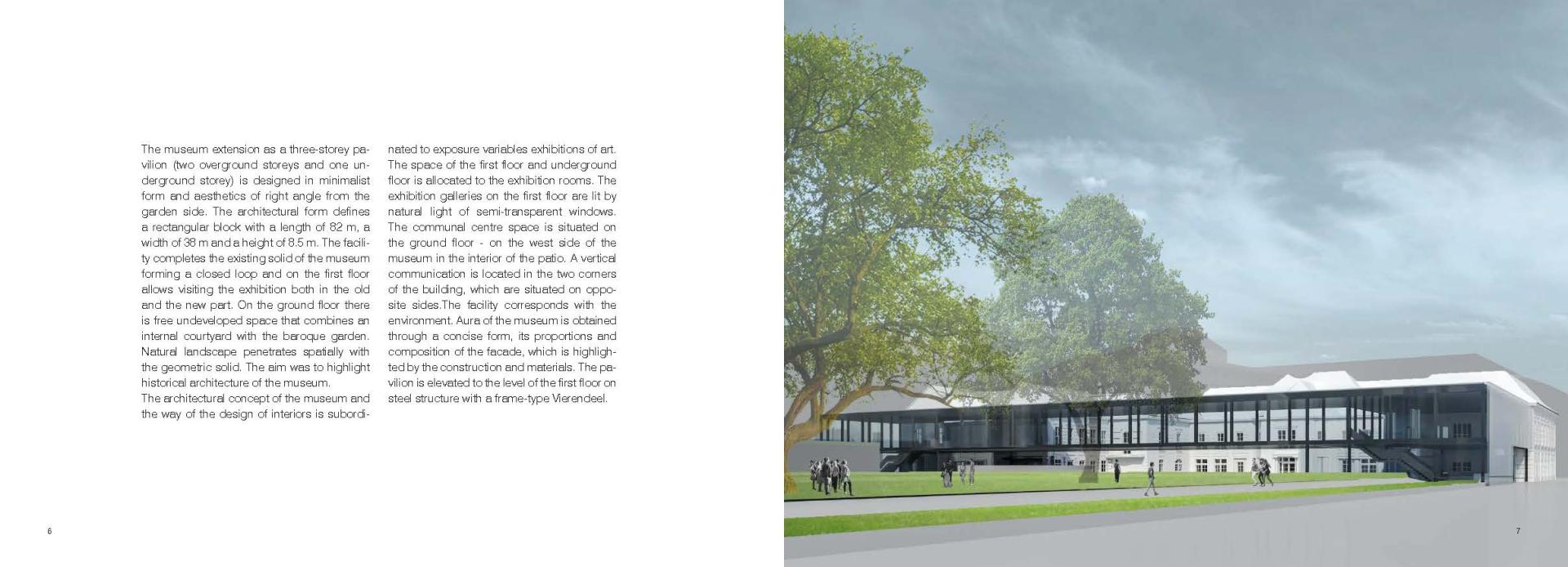

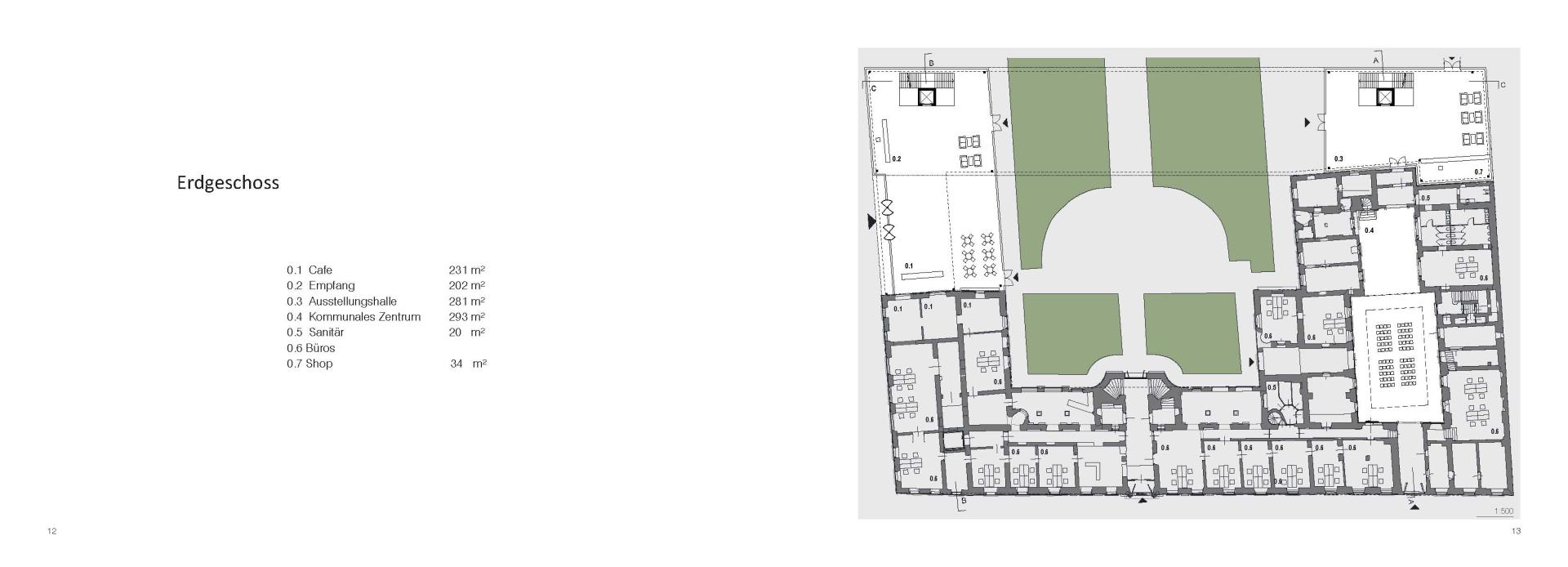

The museum extension as a three-storey pavilion (two overground storeys and one underground storey) is designed in minimalist form and aesthetics of right angle from the garden side. The architectural form defines a rectangular block with a length of 82 m, a width of 38 m and a height of 8.5 m. The facility completes the existing solid of the museum forming a closed loop and on the first floor allows visiting the exhibition both in the old and the new part. On the ground floor there is free undeveloped space that combines an internal courtyard with the baroque garden. Natural landscape penetrates spatially with the geometric solid. The aim was to highlight historical architecture of the museum. The architectural concept of the museum and the way of the design of interiors is subordinated to exposure variables exhibitions of art. The space of the first floor and underground floor is allocated to the exhibition rooms. The exhibition galleries on the first floor are lit by natural light of semi-transparent windows. The communal centre space is situated on the ground floor - on the west side of the museum in the interior of the patio. A vertical communication is located in the two corners of the building, which are situated on opposite sides. The facility corresponds with the environment. The aura of the museum is obtained through a concise form,

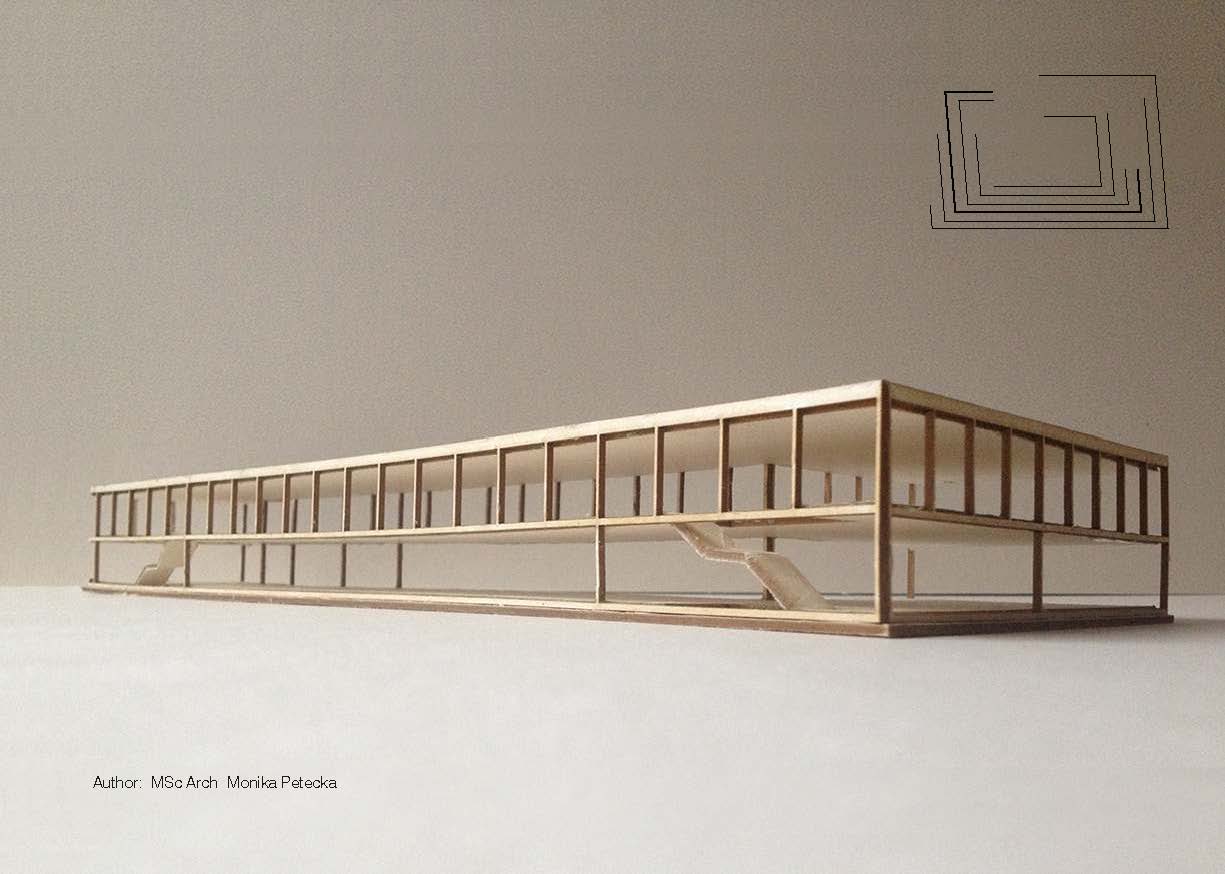

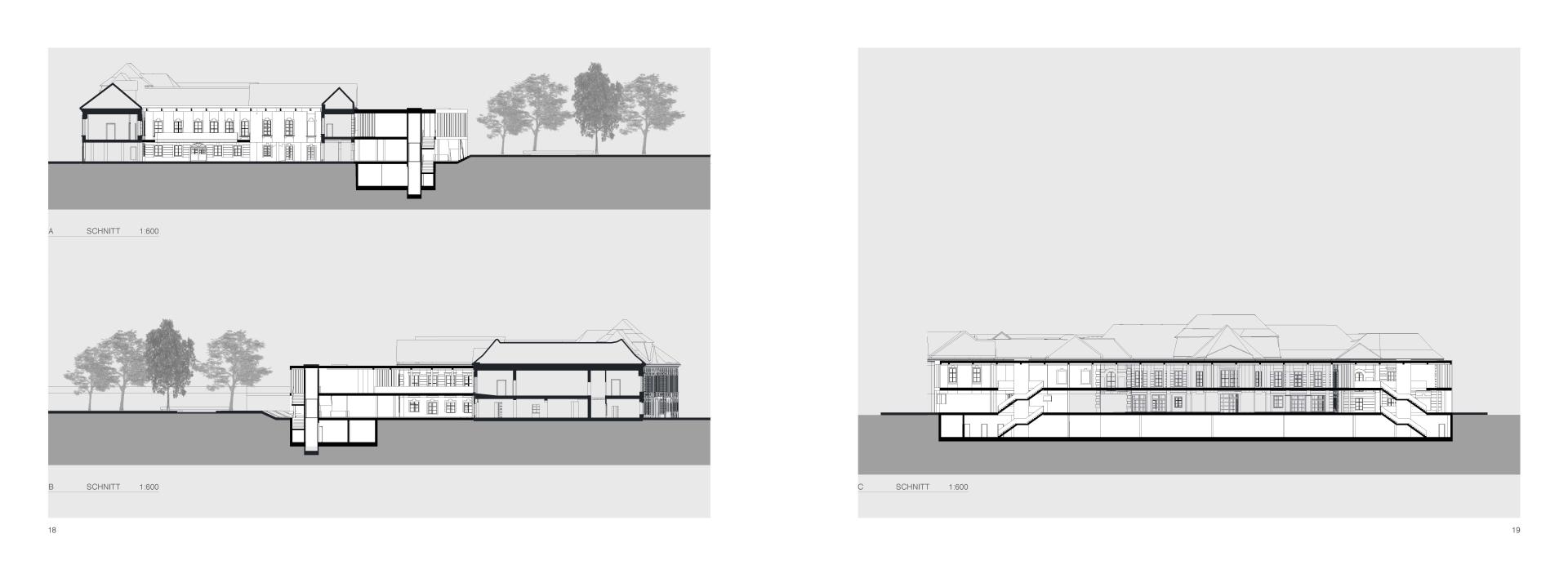

its proportions and composition of the facade, which is highlighted by the construction and materials. The pavilion is elevated to the level of the first floor on steel structure with the Vierendeel frame type.
Key objectives for sustainability
Sustainability strategy:
- Active Sustainable Design - implementation of high-efficiency electrical, plumbing, HVAC, and other systems, which are designed to have small environmental footprints.
- Green building materials and finishes - steel, concrete, and finishing materials from companies that use environmentally responsible manufacturing techniques or recycled materials
- Renewable Energy System - water and energy reduction strategies; as well as a double-skin facade system and an exterior screen to manage heat gain. Stormwater management. A bioswale allows reuse of stormwater.
- Surrounding Nature - views of native trees and plants allow for connectivity to nature of the baroque garden
Key objectives for aesthetics and quality
The project exists in harmony with nature. The facility serves to increase the well-being of the community, the level of awareness of the arts, and also has an impact on the education of visitors.
Key objectives for inclusion
The idea is to collaborate and sustainable way of participating in the creation of a coherent, inclusive and accessible urban space and public buildings.
Innovative character
The innovation of the project lies in the combination of an existing historical building with a new facility with innovative technological and spatial solutions. The three-storey pavilion is designed in minimalist form and aesthetics of right angle from the garden side.
Natural landscape penetrates spatially with the geometric solid.
By activating the existing space in a sustainable way, the prospect of the possibility of developing new ideas while respecting tradition and the present in the context of nature is opened up.
