Reincarnation proposes a method for upcycling Construction and Demolition Waste (CDW) for circularity applications in built environments, that represent local identity and material stories. A collection of unique surfaces based on bricks and ceramic tiles that show traces of its past history with a contemporary language, recovering material, economic and architectural values.
A celebration of what already exists.
Geographical Scope
Project Region
Urban or rural issues
Physical or other transformations
EU Programme or fund
Which funds
Description of the project
Summary
Reincarnation aims to celebrate what already exists by designing a method for upcycling Construction and Demolition Waste (CDW) for circularity applications in built environments. The project followed a three-part process: mining (observational research, participatory action research, and desktop research), landscaping (insights and material selection), and building (designing and prototyping).
The development was focused on the local CDW waste stream of Barcelona, Spain, a city with a rich architectural tradition and an expanding urban development, where bricks and tile waste were selected as the starting point of the process, for their wide availability, high durability, low-toxicity as inert materials, and their aesthetic qualities (and representation of culture).
Materials were collected from local sources such as debris bags in streets, local manufacturers, and building sites. The upcycling process consisted of processing the secondary materials through different steps: grinding them in different granulometries, mixing them with a binder, casting them into molds, and finishing them through sanding and the application of non-toxic coatings.

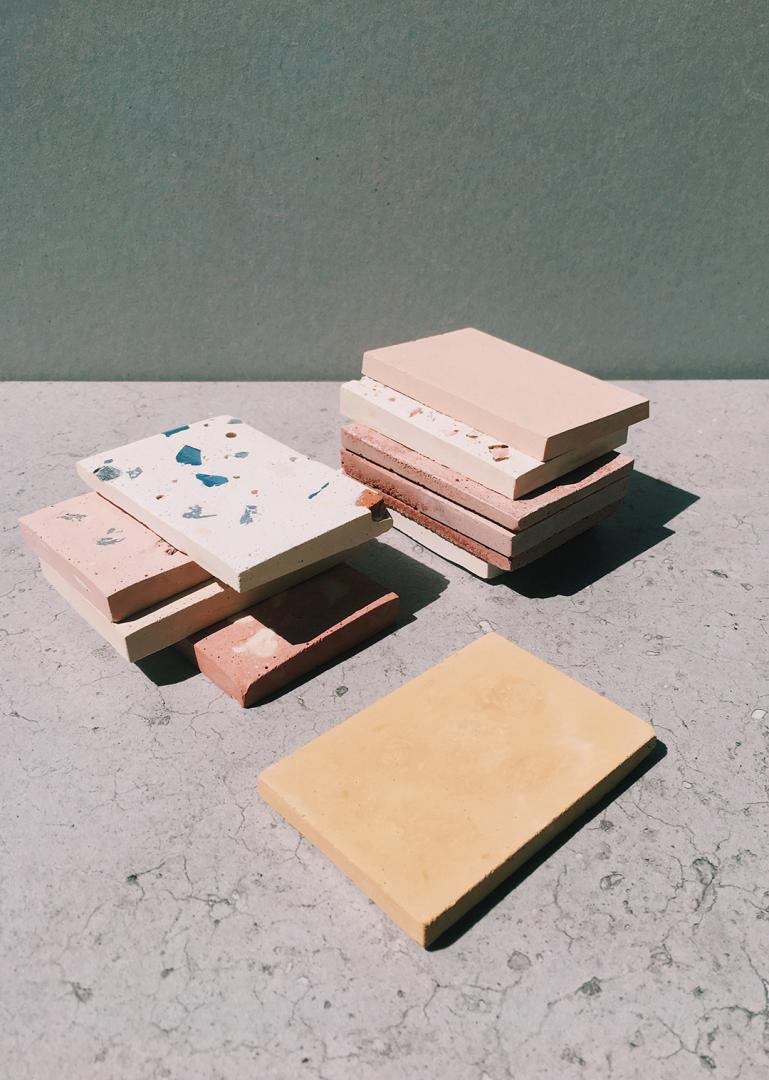

Through this process, sample tiles were created, resulting in materials with a composition of > 85% recycled material, free of volatile organic compounds, and lower embedded energy and CO2 emissions associated with the material.

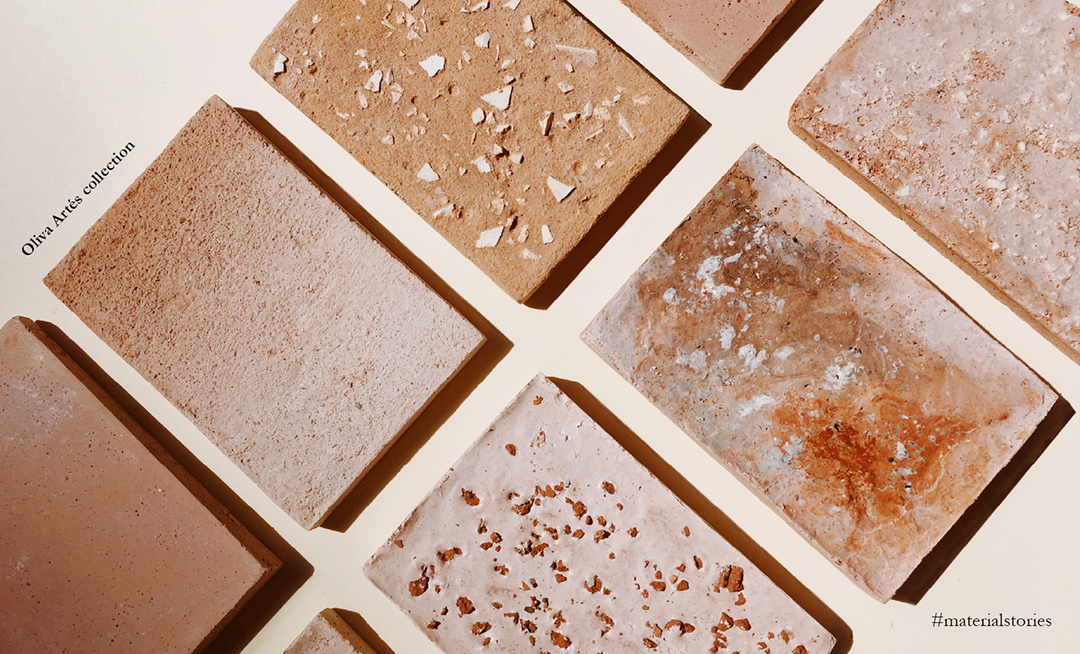

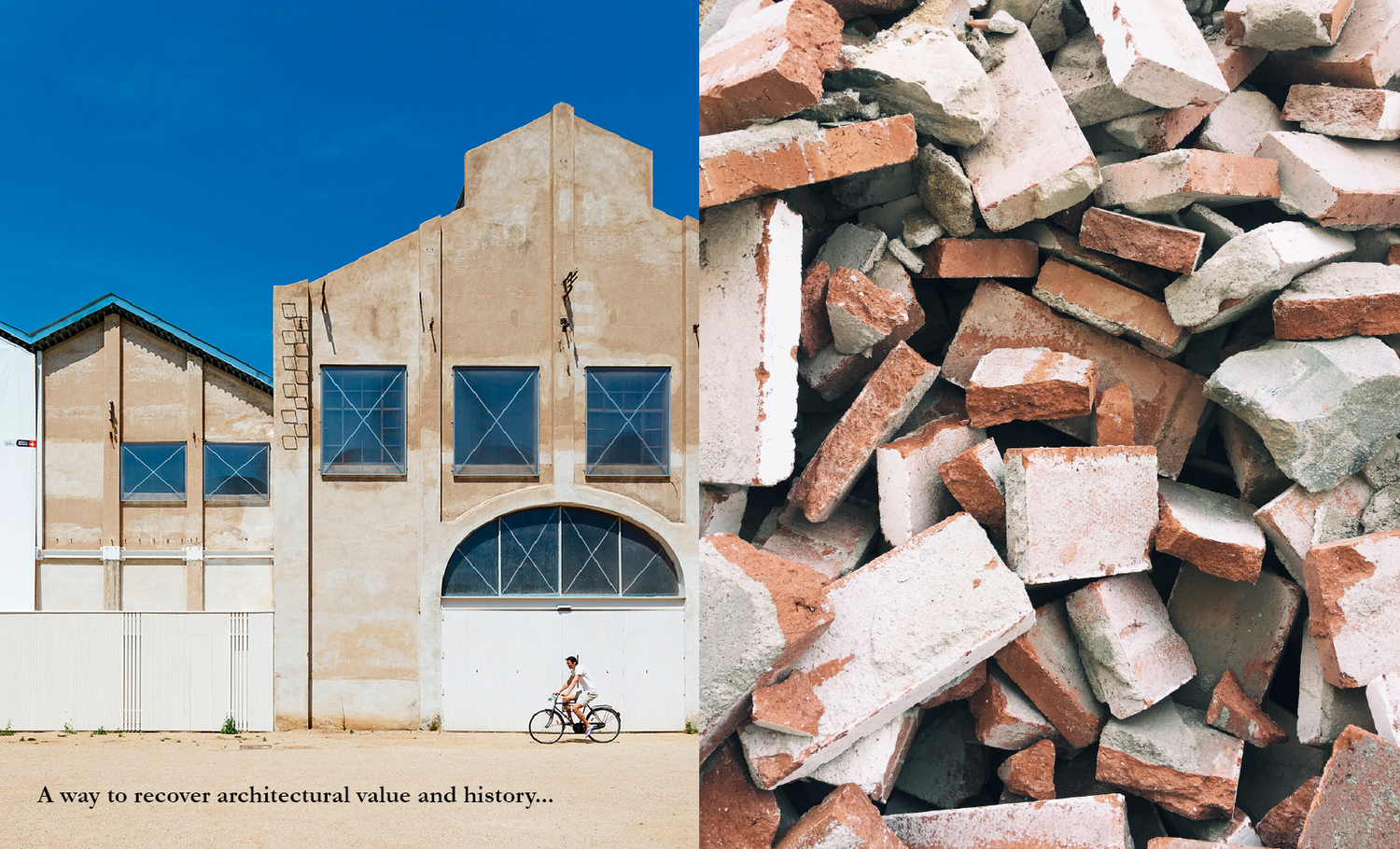

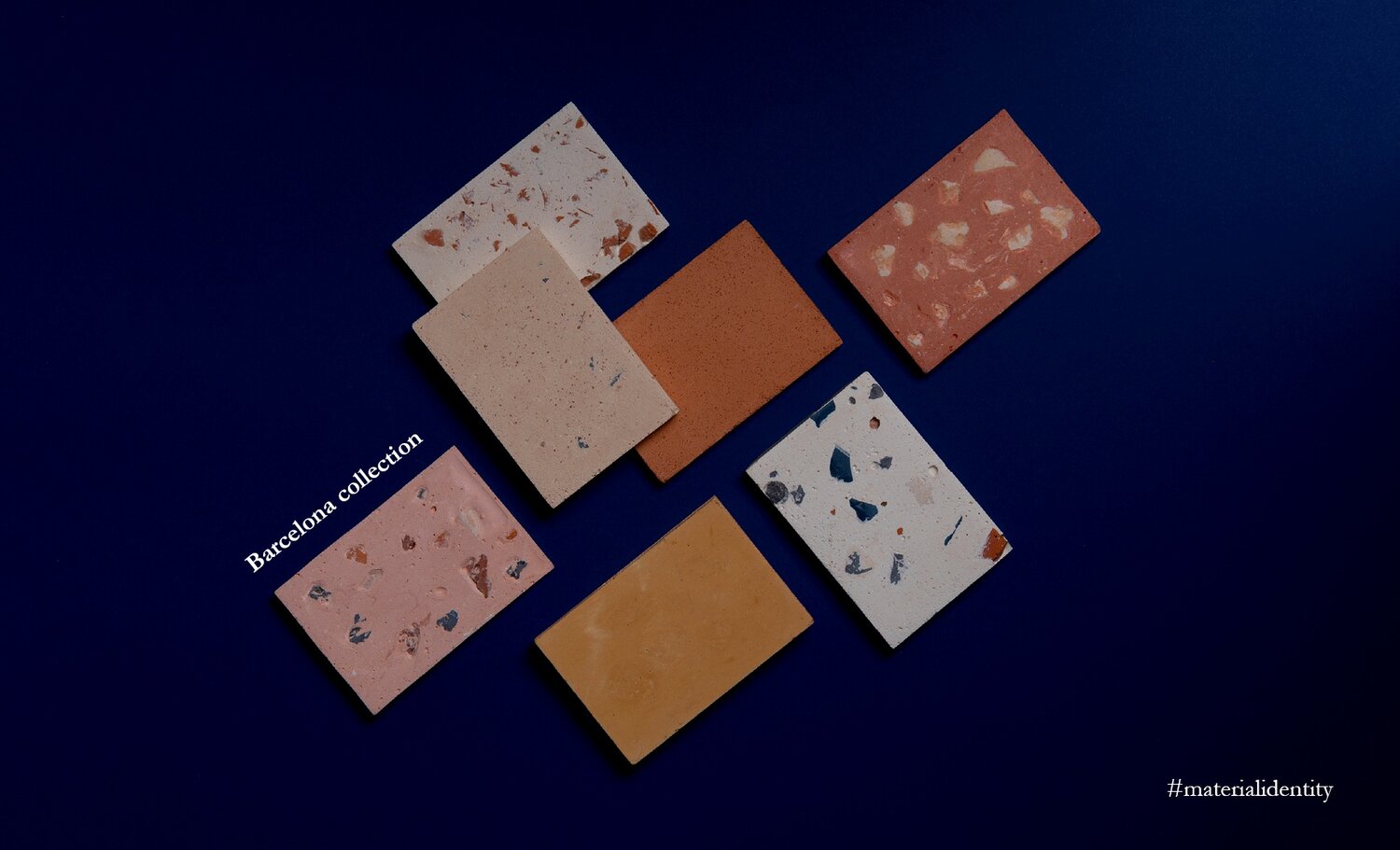

The project resulted in two collections of samples: the Barcelona collection and the Oliva Artés collection (a special edition manufactured from the construction waste of a former factory of the 19th century, located in the district of Poblenou).

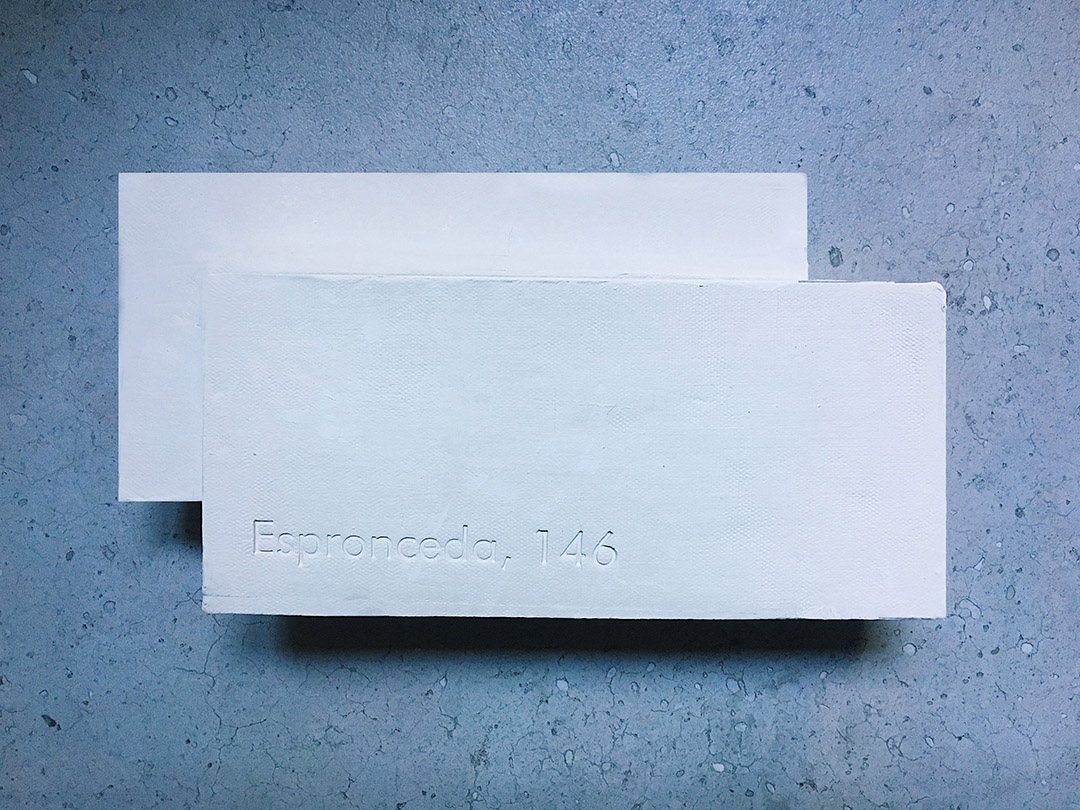

Besides the creation of new materials from waste, the project also explored the possibilities of creating material systems based on modularity and the concept of Design for Dissasembly, to promote the reuse of the materials at the end of their use cycle, to maximize material efficiency, and to facilitate building deconstruction processes.
Key objectives for sustainability
The project's key objectives were to (1) design an upcycling process to create new construction materials from CDW with a lower carbon footprint, (2) exploring waste aesthetics and human health impacts, and (3) to enable the circularity of the new materials.
To achieve this, from the beginning, the selection of waste material was based on the following main criteria: high quantity of available resource, accessible pricing, high potential for recyclability, high durability (+100 years), high aesthetic opportunities, and a low risk for human and environmental health, since bricks and tiles are inert, non-hazardous, ceramic materials, that do not absorb, leach or emit toxicants.
For upcycling, the manufacturing process was simplified to few basic steps, to avoid an unnecessary demand for energy and water, therefore reducing its environmental impact, reinforced by the fact of recovering materials from the city's own waste flows at a local distance. The calculated carbon saving potentials at the product level suggest that secondary-based products emit carbon corresponding to 30–50% of the primary production alternatives. The waste produced in the process during stages of grinding, mixing, and sanding can also be reused to make new materials of the same kind, so the byproducts can be fully utilized.

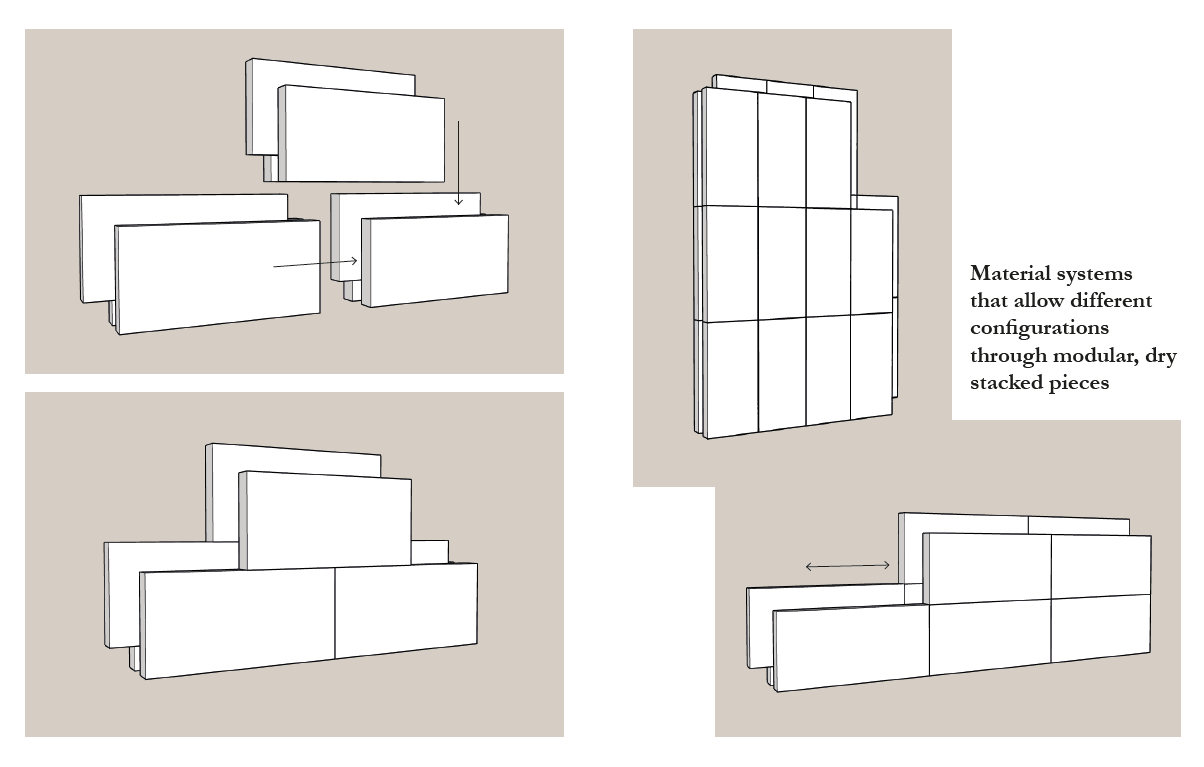

Regarding its circularity, the resulting materials are 100% recyclable, through the same process. Additionally, the project concluded the need to go beyond the material and to think of new ways of connecting materials together, envisioning a brick concept that can be joined by simple means of geometry and dry stacking, without the use of cement mortar (which difficults the separation of bricks) allowing it to be reused at its end of life, instead of having to demolish the full structure and losing the value of the materials, as in conventional construction systems.
Key objectives for aesthetics and quality
Reincarnation is designed based on the premise that beauty is central to sustainability. The experience and aesthetic design of objects and materials are powerful triggers for emotional connection, and in the end, for the product's actual conservation. We conserve what we love and value: the look, the feel, the story.
Therefore, the project explores different aspects of aesthetic qualities that give meaning to the materials.
1. Material identity: design to embrace place and enhance local identity.
The color palette of the project is based on its origin: the colorful streets of Barcelona. Beyond an International Style that supplants formal diversity with a universal box of concrete, steel, and glass, the architecture of Catalonia is varied in color and texture. Building materials should also reflect our local architectural identity. Instead of a boring gray palette, common of recycled materials, the project aims to reflect its context through the exploration of different aesthetics for waste materials.
Therefore, the material collection is inspired by local constructions, with a combination of pastels and rich ceramic colors. It shows traces of its past history, with a contemporary look and a warm color palette defined by the natural pigments of the construction waste. It is a material intended for facing, exposing its surface to communicate its message—a creation of beauty made out of waste. It wants to make waste desirable by celebrating the Mediterranean identity and embracing imperfections, through the aesthetic and tactile experience of materials.
2. Material stories: the possibility of creating new narratives that celebrate the material's previous life.
Creating limited material collections from buildings to be renovated or demolished, and recovering and communicating its architectural history, building beauty and new life from its remains without having to use additional resources.
Key objectives for inclusion
One of the key aspects for inclusion was that although the project is focused on Barcelona through its research and development it could be replicated in other parts of the world, following a similar method. The transformation of secondary materials could also provide jobs and talent growth for people with all levels of education, background, or identity, promoting circular thinking in citizens.
It is based on clay brick and tile materials which have an accessible pricing and have been widely applied through history in many countries, thus an abundance of this type of waste stream across the globe.
Externalities of waste generation and resource extraction are also insufficiently internalized in prices, but this is hopefully set to change in coming years. If systems are developed and built in place to facilitate recovery of secondary materials, this could allow a lower economic cost compared to raw materials. Therefore, upcycled materials could have an affordable pricing, being fit for a wide range of applications in different types of projects, from commercial buildings to social housing.
Waste minimization financial benefits are related to the direct costs of both waste disposal and raw material purchase. The true cost of waste is estimated to be around 20 times the cost of disposal (Waste: A Handbook for Management, 2011), which makes the efficient utilization of resources not only an environmental but also an economic and social need.
Decomposition of some building materials in a landfill also produces harmful gases, and due to systemic injustice it is mainly vulnerable, low-income populations which are far more likely to be affected and live nearby these poor quality environments. Since the construction industry is one of the most resource-intensive and polluting industries, diverting waste and building in more conscious ways could improve access to clean air and land.
A healthier, more sustainable material would benefit everyone.
Physical or other transformations
Innovative character
Many exemplary case studies and examples in the market related to sustainability are mainly based on environmental performance: consuming fewer resources, or having fewer carbon emissions compared to traditional solutions.
The project Reincarnation seeks to explore sustainability beyond this perspective, proposing that sustainability is not only linked to energy or resource consumption, but should also take into account other aspects that are perhaps more intangible and difficult to measure such as how healthy it is, or how beautiful it is, and the impact of its identity. The architectural tradition of a city across centuries is a reflection of its culture and ways of being and living, and the materials we have built with are an abundant resource that we are mainly throwing away in landfills, along with its stories, and what they have represented across time.
It also explores the aesthetics of waste materials as a reflection of locality, and their expresiveness through color, tactility, and other sensory properties that ultimately give us wellbeing and happiness. It also seeks to make waste materials desirable and position them in the market, through storytelling and involving local actors and the community. Likewise, each city can make a diagnosis of its own material flows to make the most out of them and be more efficient and less wasteful.
Finally, the project wants to give awareness of the gap between the construction materials' durability (potentially centuries) and the way we are building, where we are using highly durable materials to create disposable structures: commercial spaces, offices, among others (with a shorter lifespan of perhaps decades), where products and systems cannot be recovered and reused through time.
